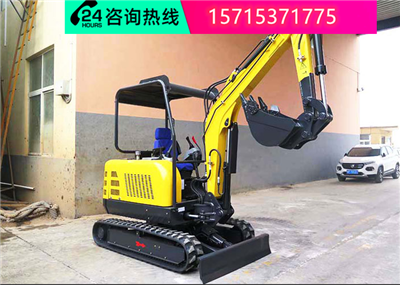

HWT-30A小型挖掘機性能參數
|
外形尺寸OVERALL DIMENSIONS
|
單位Unit |
詳細參數Specification |
| 運輸總長Total Length |
mm |
4180 |
| 運輸總寬Total Width |
mm |
1500 |
| 運輸總高Total Height |
mm |
2128 |
| 最低離地Ground Clearance |
mm |
458 |
| 整車重量Total Weight |
mm |
2600 |
| 接地比壓Ground Pressure |
mm |
38 |
| 性能PERFORMANCE |
單位Unit |
詳細參數Specification |
| 最大挖掘高度Max.Digging Height |
mm |
3900 |
| 最大挖掘半徑Max.Digging Radius |
mm |
4040 |
| 最大挖掘深度Max.Digging Depth |
mm |
2500 |
| 最大裝卸高度Max.Dumping Height |
mm |
2600 |
| 轉角Slewing Angle |
度 |
360 |
| 爬坡角Grade ability |
度 |
25 |
| 行走速度Travel speed |
km/h |
2.6 |
| 鏟斗寬度Bucket Width |
mm |
500 |
| 斗容Bucket Capacity |
m3 |
0.095 |
| 動臂偏轉角度（左/右）Swing angle of boomL/R |
° |
70/50 |
| 履帶 TRACK |
單位Unit |
詳細參數Specification |
| 中心距Track Gauge |
mm |
1150 |
| 寬Track Width |
mm |
250/260 |
| 接地長Track Length（on ground） |
mm |
2300 |
液壓參數HYDRAULIC SYSTEM
|
單位Unit |
詳細參數Specification |
| 主泵Main Pump |
|
Triple Pump |
主壓力Main Pressure
|
Mpa |
18 |
| 泵最大轉速Max.Rpm of the pump |
r/min |
2500 |
| 泵排量Pump Displacement |
ml/r |
28 |
| 發動機Engine |
單位Unit |
詳細參數Specification |
| 型號Mode1 |
|
常柴390/洋馬3TNV88 |
| 功率0utput |
KW/rpm |
20/2200/19.6/2200 |
